ASTM A106 Grade A
Carbon Steel ASTM A106 Grade A
ASTM A106 Grade A Carbon Steel is a carbon steel grade primarily used for seamless pipes operating under high-temperature and pressure conditions.
ASTM A106/A106M covers seamless carbon steel pipe for high-temperature service, making it widely applicable to refineries, power plants, petrochemical facilities, process plants, and industrial piping systems.
Grade A provides a combination of mechanical strength, ductility, weldability, machinability, and suitability for elevated-temperature service. It has lower minimum mechanical strength than ASTM A106 Grades B and C, while remaining suitable for many high-temperature piping applications.
ASTM A106 Grade A is commonly used for steam, hot water, hydrocarbons, process fluids, refinery piping, power generation, and industrial thermal systems.
Key Features
- Carbon steel for high-temperature service
- Seamless pipe
- Good mechanical strength
- Suitable for elevated-temperature applications
- Good ductility
- Good weldability
- Good bendability
- Good machinability
- Suitable for pressure piping
- Suitable for process piping
- Wide range of available dimensions
- Commonly used in refineries and power plants
ASTM A106 Grade A Specifications
| Specification | Details |
|---|---|
| Grade | ASTM A106 Grade A |
| Material | Carbon Steel |
| Standard | ASTM A106/A106M |
| UNS | K03504 |
| Product | Seamless Carbon Steel Pipe |
| Manufacturing | Seamless |
| Available Grades | A, B, C |
| Ends | Plain or Beveled |
| Service | High Temperature & Pressure |
| Weldability | Good |
| Main Applications | Steam, Process, Refinery, Energy, Petrochemical |
Types of ASTM A106 Grade A Pipe
ASTM A106 Grade A is primarily supplied as seamless carbon steel pipe.

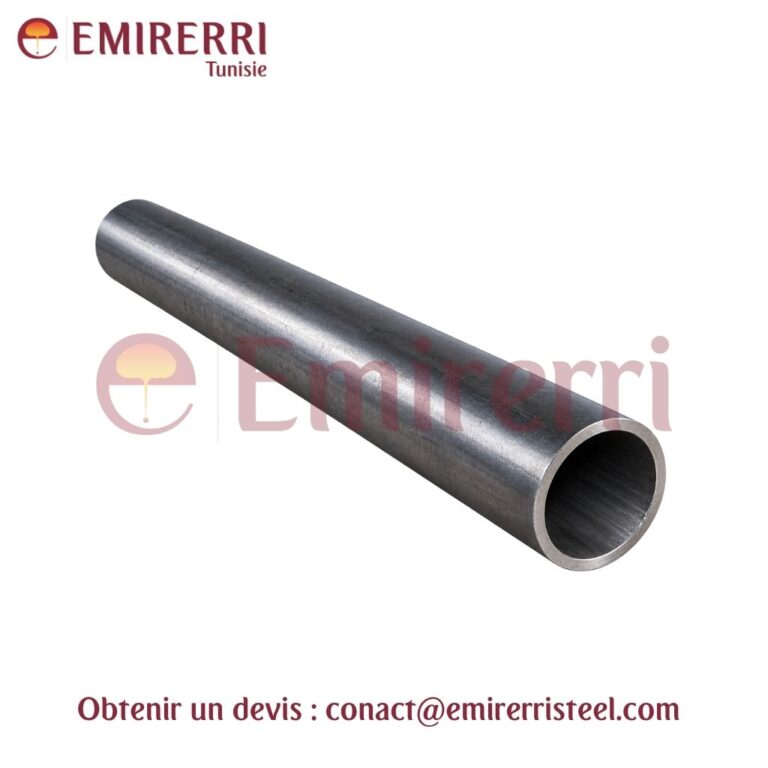

ASTM A106 Grade A Seamless Pipe
Seamless ASTM A106 Grade A pipe is manufactured without a longitudinal welded seam and is particularly suitable for applications where pressure and elevated-temperature service are important design considerations.
Common End Configurations
- Plain End
- Beveled End
- Threaded End for selected applications
Beveled ends are commonly used for butt-welding during piping installation.
Equivalent Grades
| Standard | Comparable Grade |
|---|---|
| ASTM | A106 Grade A |
| UNS | K03504 |
| EN | Depends on application |
| DIN | Depends on product |
| JIS | Depends on project requirements |
ASTM A106 Grade A should not automatically be considered equivalent to another carbon steel grade. Material selection must consider pressure, temperature, fluid, dimensions, design code, testing, and certification requirements.
Available Sizes
ASTM A106 Grade A seamless pipes are available in a broad range of nominal pipe sizes and wall thicknesses.
Common Schedules
- SCH 10
- SCH 20
- SCH 30
- SCH 40
- SCH 60
- SCH 80
- SCH 100
- SCH 120
- SCH 140
- SCH 160
- XXS
Product Forms
- Seamless Pipe
- Plain-End Pipe
- Beveled-End Pipe
- Threaded Pipe for suitable applications
Exact dimensions and availability depend on the nominal diameter, wall thickness, manufacturing requirements, and project specifications.
ASTM A106 Grade A Chemical Composition
| Element | Maximum / Required Content (%) |
|---|---|
| Carbon (C) | ≤ 0.25 |
| Manganese (Mn) | 0.27–0.93* |
| Phosphorus (P) | ≤ 0.035 |
| Sulfur (S) | ≤ 0.035 |
| Silicon (Si) | ≥ 0.10 |
| Chromium (Cr) | ≤ 0.40 |
| Nickel (Ni) | ≤ 0.40 |
| Molybdenum (Mo) | ≤ 0.15 |
| Copper (Cu) | ≤ 0.40 |
| Vanadium (V) | ≤ 0.08 |
| Iron (Fe) | Balance |
*The manganese requirement should be verified against the applicable edition of ASTM A106/A106M and the specific product certification.
ASTM A106 Grade A Mechanical Properties
| Property | Minimum Value |
|---|---|
| Tensile Strength | 330 MPa |
| Yield Strength | 205 MPa |
| Elongation | According to diameter and wall thickness |
| Hardness | According to applicable requirements |
Grade A has lower minimum mechanical strength than Grades B and C, but is suitable for applications where the required design strength is compatible with its properties.
ASTM A106 Grade A Physical Properties
| Property | Approximate Value |
|---|---|
| Density | 7.85 g/cm³ |
| Modulus of Elasticity | ≈ 200 GPa |
| Thermal Conductivity | ≈ 45–55 W/m·K |
| Thermal Expansion Coefficient | ≈ 11–12 × 10⁻⁶ /°C |
| Specific Heat Capacity | ≈ 480 J/kg·K |
| Magnetic Properties | Magnetic |
Corrosion Resistance
ASTM A106 Grade A is a carbon steel and does not possess the inherent corrosion resistance of stainless steel.
It can be susceptible to:
- Atmospheric corrosion
- Moisture
- Water
- Chlorides
- Marine environments
- Internal corrosion caused by certain process fluids
- Chemical corrosion
Corrosion Protection
Depending on the application, protection can include:
- Industrial painting
- Epoxy coatings
- Internal pipe coatings
- Cathodic protection
- Corrosion inhibitors where applicable
For highly corrosive services, stainless steel, alloy steel, or specially protected carbon steel may be required.
Heat Resistance
One of the main characteristics of ASTM A106 Grade A is its suitability for elevated-temperature service.
It can be used for systems carrying:
- Steam
- Hot water
- Heated hydrocarbons
- Process fluids
- High-temperature gases
However, carbon steel loses mechanical strength as temperature increases. Therefore, allowable pressure and temperature limits must be established according to the applicable design code, wall thickness, operating temperature, and service conditions.
Heat Treatment
Heat treatment requirements depend on the pipe dimensions, manufacturing process, and applicable requirements of ASTM A106/A106M.
Normalizing
Normalizing can be used to obtain a more uniform microstructure and mechanical properties.
Stress Relieving
Stress relieving may be used after certain fabrication or welding operations to reduce residual stresses.
Post-Weld Heat Treatment
Where required by the applicable design code, PWHT depends on factors such as wall thickness, material, welding procedure, and service conditions.
Welding
ASTM A106 Grade A offers good weldability due to its relatively low carbon content.
Common Welding Processes
- SMAW
- GTAW / TIG
- GMAW / MIG
- FCAW
- SAW
Welding Applications
ASTM A106 Grade A pipe can be prepared for:
- Butt welding
- Fitting connections
- Flange welding
- Branch connections
- Pipe spool fabrication
- Process piping assemblies
For thick-wall pipe or demanding service conditions, preheating, interpass temperature control, and PWHT may be required according to the qualified welding procedure and applicable code.
Fabrication
ASTM A106 Grade A can be fabricated using conventional pipe-processing techniques.
Cutting
- Mechanical sawing
- Plasma cutting
- Oxy-fuel cutting
- Abrasive cutting
Bending
Pipe bending can be performed according to the required radius and applicable fabrication requirements.
Machining
- Drilling
- Turning
- Milling
- Threading
- Tapping
End Preparation
- Plain ends
- Beveled ends
- Welding-end preparation
Applications
Oil & Gas Industry
- Process piping
- Steam lines
- Hot hydrocarbon lines
- Auxiliary piping
- Pressure piping
Refineries
- Process piping
- Hydrocarbon lines
- Steam systems
- Hot-fluid lines
- Heating systems
Petrochemical Industry
- Process piping
- Steam networks
- Hot-fluid systems
- Industrial utility lines
Power Generation
- Steam piping
- Hot-water systems
- Auxiliary piping
- Process systems
General Industry
- Industrial process piping
- Thermal systems
- Pressure piping
- Industrial heating systems
- High-temperature fluid transportation
ASTM A106 Grade A in Tunisia, Algeria, Morocco & Libya
ASTM A106 Grade A Carbon Steel is suitable for many industrial projects across Tunisia, Algeria, Morocco, and Libya, particularly in oil & gas, refineries, petrochemicals, power generation, steam systems, energy, and industrial manufacturing.
It is particularly suitable for seamless piping systems operating at elevated temperatures when the pressure, temperature, fluid, and design requirements are compatible with ASTM A106/A106M.
For North African projects, selection between ASTM A106 Grade A, ASTM A106 Grade B, ASTM A53 Grade B, and API 5L should be based on:
- Operating pressure
- Operating temperature
- Fluid characteristics
- Pipe dimensions
- Seamless or welded construction
- Applicable design code
- Inspection and testing requirements
ASTM A106 Grade A vs Grade B
| Property | ASTM A106 Grade A | ASTM A106 Grade B |
|---|---|---|
| Material | Carbon Steel | Carbon Steel |
| Manufacturing | Seamless | Seamless |
| Tensile Strength | ≥ 330 MPa | ≥ 415 MPa |
| Yield Strength | ≥ 205 MPa | ≥ 240 MPa |
| Mechanical Strength | Good | Higher |
| High-Temperature Service | Yes | Yes |
| Weldability | Good | Good |
| Typical Use | Process & elevated-temperature piping | More demanding process piping |
ASTM A106 Grade B is generally selected when higher minimum mechanical strength is required.
ASTM A106 Grade A vs ASTM A53 Grade B
| Property | ASTM A106 Grade A | ASTM A53 Grade B |
|---|---|---|
| Material | Carbon Steel | Carbon Steel |
| Manufacturing | Seamless | Seamless or Welded |
| Tensile Strength | ≥ 330 MPa | ≥ 415 MPa |
| Yield Strength | ≥ 205 MPa | ≥ 240 MPa |
| High-Temperature Service | Specifically intended for high-temperature service | General-purpose piping |
| Typical Applications | Steam, refinery, process, hot fluids | Water, gas, utilities, general piping |
Conclusion
Carbon Steel ASTM A106 Grade A is primarily designed for seamless carbon steel pipe used in high-temperature and pressure applications.
It provides a useful combination of mechanical strength, ductility, weldability, fabrication performance, and suitability for elevated-temperature service.
ASTM A106 Grade A is widely used in oil & gas, refineries, petrochemical plants, power generation, steam systems, thermal processes, and industrial piping.
For projects in Tunisia, Algeria, Morocco, and Libya, ASTM A106 Grade A provides a reliable solution for seamless high-temperature piping when the operating pressure, temperature, fluid characteristics, dimensions, and applicable design code meet the requirements of ASTM A106/A106M.
